- > 100 micrometer travel in each axis with sub-nanometer resolution
- < 0.005% hysteresis and linearity error
- First resonant frequency > 350 Hz (NPS-XY-100A) >500 Hz (NPS-XY-100B) >650 Hz (NPS-XY-100D)
- High bandwidths (> 50 Hz) and fast response times
- In-situ scanning and stepping response optimization
- Use with NPS-Z-15A or NPS-Z-15H for XYZ options
- Super Invar construction (NPS-XY-100A), Aluminum Alloy (NPS-XY-100B) or Aluminum (NPS-XY-100BD)

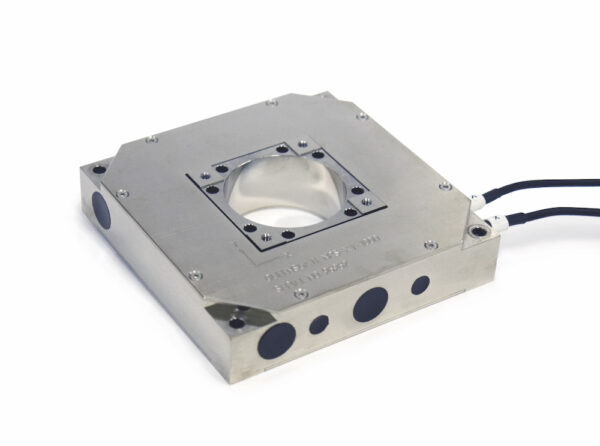

NPS-XY-100D Aluminum Two Axis 100µm x 100µm Stage
The NPS-XY-100 is a piezo scanned flexure guided stage with integrated capacitance position sensors and is capable of sub-nanometer resolution and reproducibility.
Finite element analysis of the flexure guidance mechanisms has reduced parasitic angular motions to less than 25 micro-radians over the full 100 micron range. The unique isostatic mounting system ensures that stresses from the mounting system are properly relieved and establishes the center of the stage as the co-ordinate reference point.
The NPS-XY-100D Aluminum Two Axis 100µm x 100µm Stage is made of Aluminum. It has the best resolution, fastest dynamics of the XY-100 range and is the most cost-effective. It includes 4 corner mounting for simple installation.
Suggested controllers
- NPC-D-6330
NPS-XY-100D Aluminum Two Axis 100µm x 100µm Stage
The NPS-XY-100 is a piezo scanned flexure guided stage with integrated capacitance position sensors and is capable of sub-nanometer resolution and reproducibility.
Finite element analysis of the flexure guidance mechanisms has reduced parasitic angular motions to less than 25 micro-radians over the full 100 micron range. The unique isostatic mounting system ensures that stresses from the mounting system are properly relieved and establishes the center of the stage as the co-ordinate reference point.
The NPS-XY-100D Aluminum Two Axis 100µm x 100µm Stage is made of Aluminum. It has the best resolution, fastest dynamics of the XY-100 range and is the most cost-effective. It includes 4 corner mounting for simple installation.
Suggested controllers
- NPC-D-6330
- High Precision Microscopy
- AFM, SPM, NSOM
| Model | NPS-XY-100D |
| Axis | X, Y |
| Range | 100 μm XY |
| Position noise | 0.14 nm XY |
| Repeatability | 0.5nm XYZ |
| Linearity | 0.003% |
| Step Settle | 4ms |
| Material | Aluminum |
| Size (L x W x H) | 100 mm x 100 mm x 23 mm |
